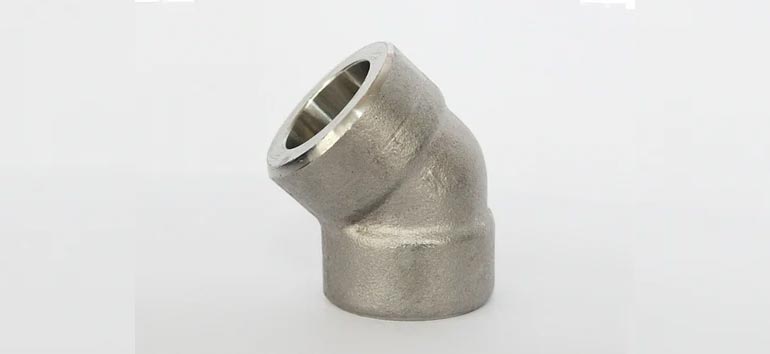

45° Elbow
The technological advancement and modern equipment have resulted in ineffectiveness in the production of quality of Socket Weld 45° Elbows, HGFF GROUP is one engaged in supplying varieties of elbows to its global and domestic buyers at reasonable rates. In the industry, the product is undergoing stage wise thorough inspection by the expert to assure error-free and high quality of production. Each and every buyer can be assured to have the best deal with the industry as the product is provided at industrial rates. The Forged Socket Weld 45 Deg Elbow is resistance to corrosion/pitting/oxidation/stress corrosion cracking and crevice corrosion. It is having high tensile strength and good dimensional accuracy to ower. Additionally, it withstands heavy loads and also withstands in the high-temperature atmosphere.

Stainless Steel: ASTM A 312, A 213, A 213, A 249, A 269, A 358, A 240, A 276
Type: 202, 304, 304L, 304, 304H, 316, 316L, 316Ti, 321, 321H, 317, 317L, 310, 310S, 409, 410, 420, 430 etc.

Carbon Steel: ASTM A 106, A 53, API A 5L Gr A, B, C, ASTM A 333, Gr 1 to 6 (IBR & NON IBR)

Alloy Stel: ASTM A 335, GR P1, P2, P5, P9, P11, P22, P91

Nickel Alloys: Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy 904, Titanium, Tungston, SIlver Nickel, Zirconium, Palladium, Vanadium etc.

Copper Alloys: Aluminium, Copper, Brass & Gunmetal

Buttweld & Forged Fittings: ASTM A 403, A182, A 234, A 105, A 420, A 350 & LF2 etc. (IBR & NON IBR)

TYPES : Elbow, Tee, Union, Cross, Coupling, Cap, Bushing, Plug, Swage Nipple, Welding Boss, Hexagon Nipple, Barrel Nipple, Welding Nipple, Parraler Nipple, Street Elbow, Hexagon Nut, Hose Nipple, Bend, Adapter, Insert, Weldolet, Elbowlet, Sockolet, Thredolet, Nipolet, Letrolet, etc.

Size : 1/8"NB TO 4"NB.(Socketweld &Threaded)

Class : 150# , 3000#, 6000#, 9000#.

Forged Fitting elbow 45°


Nominal Diameter Depth of Socket Dimension of Socket Wall Thickness Center to Bottom of Socket
A
Cmin 90°Elbow Cmin
DN NPS Jmin d1 3000LB 6000LB 9000LB 3000LB 6000LB 9000LB 3000LB 6000LB 9000LB
6 1/8 10 10.7 3.2 3.5 - 11 11 - 8 8 -
8 1/4 10 14.1 3.3 4 - 11 15 - 8 8 -
10 3/8 10 17.5 3.5 4.4 - 13 15 - 8 12 -
15 1/2 10 21.8 4.1 5.2 8.2 16 19 25 11 13 16
20 3/4 13 27.4 4.3 6.1 8.6 19 22 28 13 14 18
25 1 13 34.2 5 7 10 22 27 32 14 18 22
32 1.1/4 13 42.9 5.3 7 10.6 27 32 35 18 21 22
40 1.1/2 13 48.3 5.6 7.8 11.2 32 38 38 21 25 25
50 2 13 61.1 6.1 9.5 12.2 38 41 41 25 29 29
65 2.1/2 16 76.9(73.8) 7.7 12.5 - 41 57 - 29 32 -
80 3 16 89.8 8.3 13.8 - 57 64 - 32 35 -
100 4 19 115.5 9.4 - - 66 - - 42 - -
