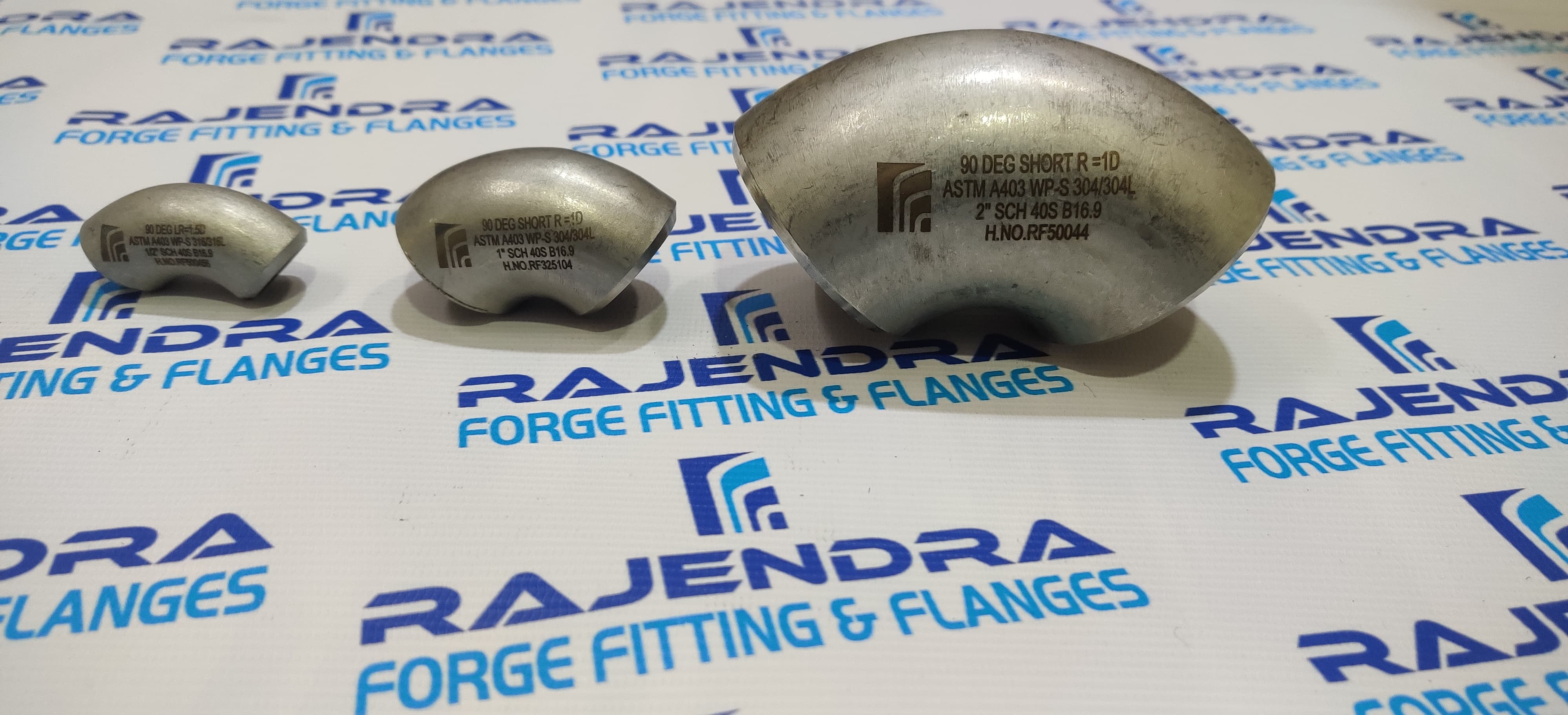

ELBOW
Butt weld elbow is a steel elbow formed by hot pressing or forging. Its connection form is to directly weld the elbow and steel pipe. Butt welded elbows are mainly used for elbow with higher pressure and temperature than other connection types (socket welded elbow or threaded pipe elbow)
Form

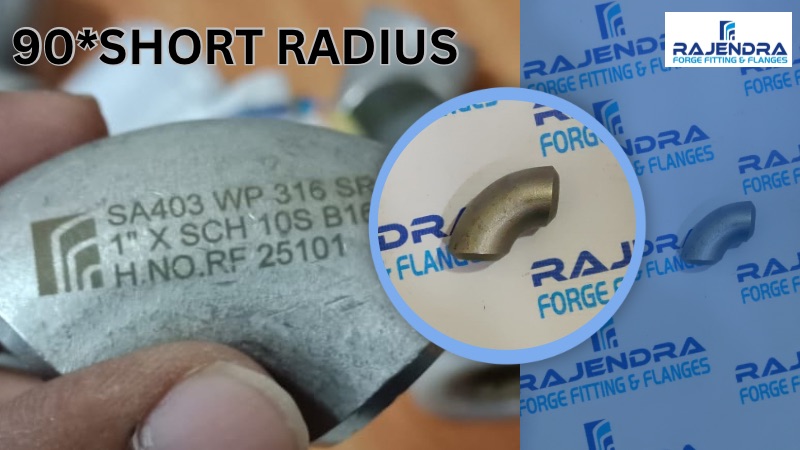

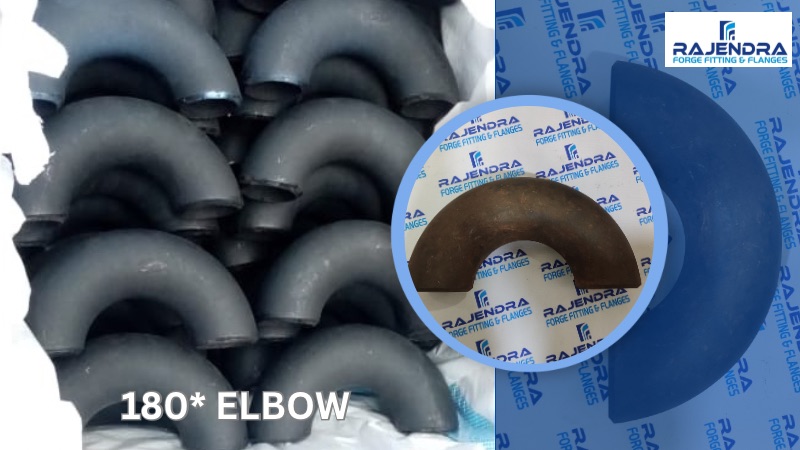

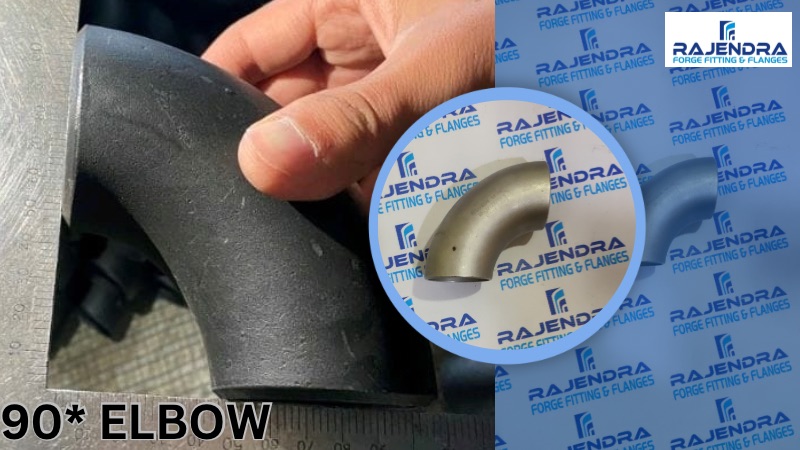

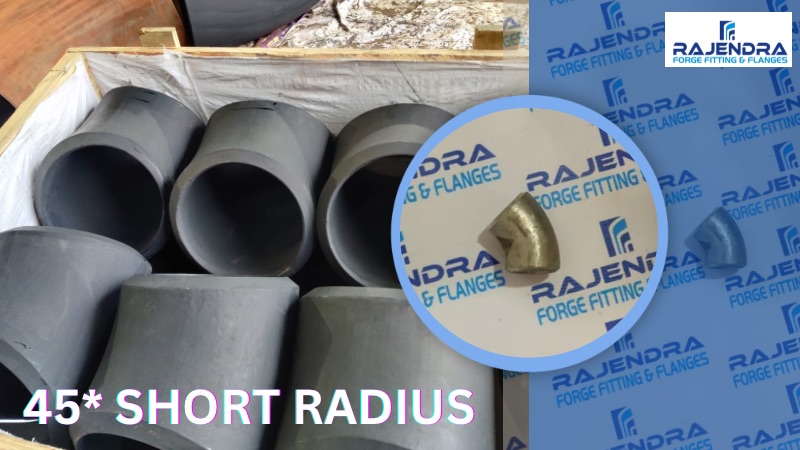

Elbows in long & short radius in 45 deg, 90 deg, 180 deg
Grades offered
Stainless Steel
ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347
/
904L
Carbon Steel
ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 /
56 / 60 /
65 / 70
Alloy Steel
ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 ASTM A234 WP1 / WP5 / WP9 /
WP11 /
WP22 / WP91
Size
1/8″ NB to 48″ NB (Seamless & Welded)
Wall thickness
Sch. 5S to Sch. XXS.
Features:
- Leakproof and Reliable :These fittings are designed to provide a leakproof and reliable connection in a piping system, ensuring the smooth operation of the system
- High Strength :The fittings are known for their superior tensile and yield strength, making them durable and long-lasting
- Smooth Flow :The design of these fittings allows for a smooth flow of fluid, reducing the chances of blockages and ensuring efficient operation
- Versatility :The Reducing Elbow Buttweld fittings are versatile, with openings of different sizes to accommodate various piping requirements
Specification
| Specification | Details |
|---|---|
| Material | The materials used for these fittings include Duplex Steel, Stainless Steel, Super Duplex Steel, and Nickel Alloys |
| Types | The fittings are available in two types: Seamless and Welded |
| Angles | The fittings come in different angles, including 22.5, 45, 90, and 180 degrees |
| Sizes | The sizes range from 1/2" to 48" |
| Standards | The fittings are made as per ASME spec B16.9 |
