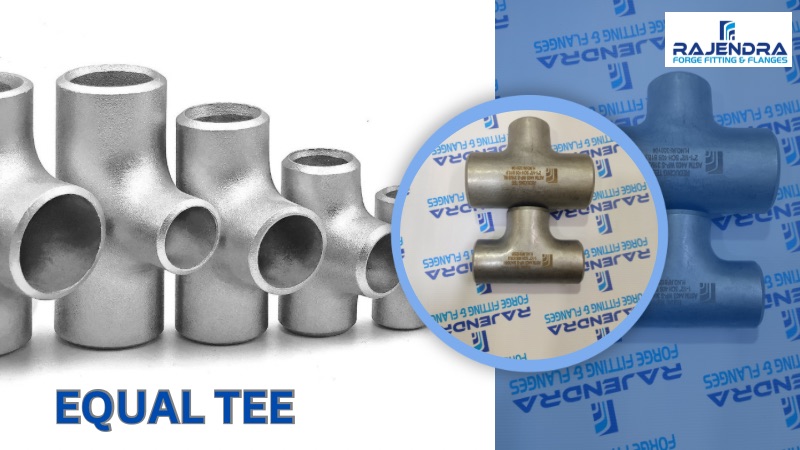

EQUAL TEE

Equal Tee is a T-shaped device which has three openings that act as an outlet for the pipe. All the three ends of the equal tee are of the same size. We can offer equal in different metals such as monel, nickle, inconel, hastalloy, copper, brass and titanium material. Custom made equal can be developed to befit the specific application requirement of the clients..

The Equal Tee Asme B16.9 offered by us are widely used in wide array of industries such as shipbuilding, power generation, oil & gas, pulp and paper mills, petrochemical wastewater treatment plants, and pharmaceutical plants. These seamless & welded Barred Equal Tee typically conform to dimensional standard ANSI B 16.9. This specification of Asme B16 9 Tees is available in classes between 2000 to 9000.

Equal Tee ASME B16.9 Specification

---

Specifications	ASME B16.9 Equal Tee Fitting
Asme B16 9 Tee size	Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48"
ASME B16.9 Equal TeeDimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Tee Dimensions Asme B16 9 Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75

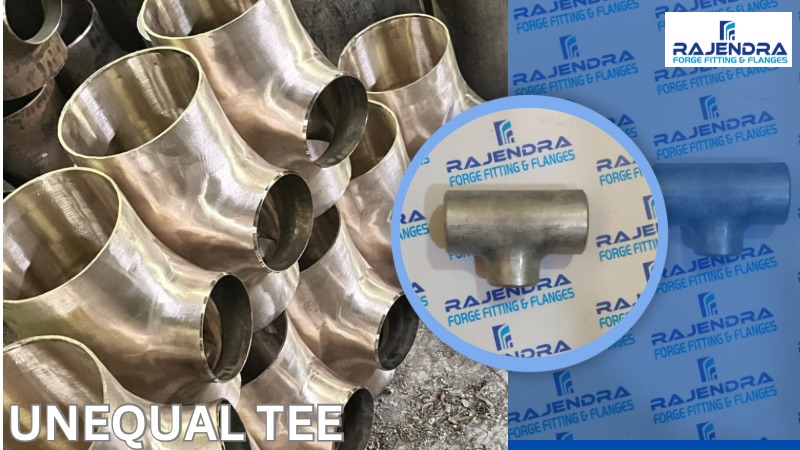

Unequal Tee Types	Seamless / ERW / Welded / Fabricated Pipe Fittings
Equal Tee And Reducing Tee Type	DN15-DN1200
Connection For Equal And Unequal Tee	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Equal Tee Asme B16.9 Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Barred Equal Tee Fittings	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process for Bw Equal Tee	Push, Press, Forge, Cast, etc.
Cast Iron Equal Tee Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Origin & Mills for Carbon Steel Equal Tee	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Copper Equal Tee	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Equal Flow Tee Application	Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc ASME B16.9 Schedule 10 Equal Tee are an economical alternative for lower-pressure applications. ANSI B16.9 Schedule 40 Equal Tee have a thicker wall for higher-pressure applications.

ASME B16.9 Equal Tee Fitting Weight Chart

---
