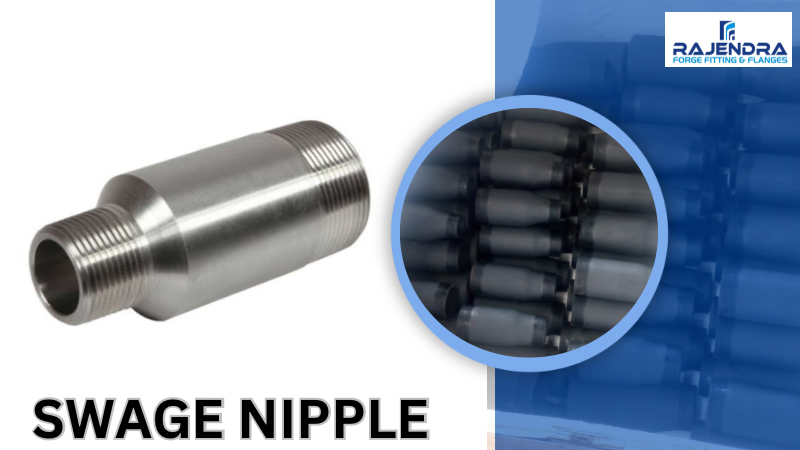

SWAGE NIPPLE & BARREL NIPPLE
We offer Swage Nipple and Barrel Nipple, specially designed to withstand high temperature and pressure. These can be used for permanent welded connection or detachable thread connection. Our range is available in varied specifications to suit the application based requirements of the clients.
Features
Durable
Corrosion resistance
High tensile strength
Temperature resistance
Superior finish
Specifications
| Size | 1/8” to 8”, DN8 to DN200 |
| Type | Concentric Swage Nipples, Eccentric Swage Nipples |
| Dimensions | MSS SP-95-2006, BS 3799 |
| Raw Materials | A106 Gr. B Seamless Pipes, A105/A105N Bars, A182 304/304L Bars, A182 316/316L Bars, A312 304/304L Seamless Pipes, Duplex Seamless Pipes, A312 316/316L Seamless Pipes, A350-LF2, Alloy Steel Seamless Pipes/Bars |
| Material Specifications | ASTM A105, A350 LF2, ASTM A182 (F304,F304L,F316,F316L,F304H,F316H,F317L,F321,F11,F22,F91) |
| Connection Ends | PBE: Plain both ends, BBE: Bevel both ends, TBE: Thread both ends PSE: Plain small end, BSE: Bevel small end, TSE: Thread small end PLE: Plain large end, BLE: Bevel large end, TLE: Thread large end Thickness: Standard, Extra Heavy, Schedule 160, or Double Extra Heavy |
| Ends | Beveled, Square Cut (for socket-weld), NPT/BSPT/BSP Threaded Swages, Customer Specification |
| Test Certificates | EN 10204 3.1, Raw Material Certificates Available, Destructive & Non Destructive Testing (NDT) Reports from NABL Approved Labs |
| Material Finish | Electro-Galvanized Coating, Black Finish, Blackodising Finish, Sand Blasting, or Pickled Finish in case of Stainless Steel Swage Nipples |
